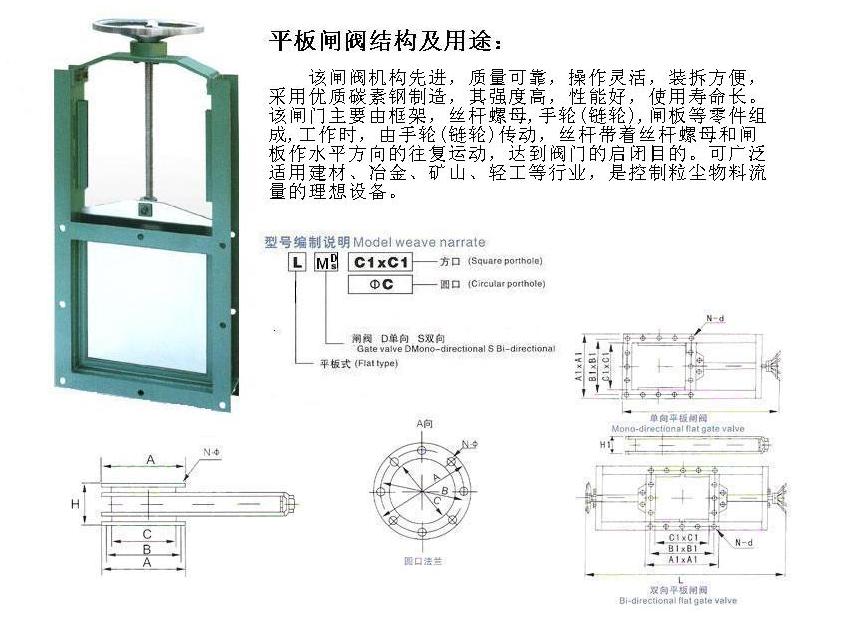

手、气、电、电液动平板闸阀主要技术参数：
|
C |
B |
A |
H |
C1XC1 |
B1 |
A1XA1 |
H1 |
N-ф |
|
φ200 |
260 |
φ300 |
200 |
200X200 |
250 |
300X300 |
120 |
8-ф11 |
|
φ220 |
280 |
φ320 |
200 |
220X220 |
270 |
320X320 |
120 |
8-ф11 |
|
φ240 |
300 |
φ340 |
200 |
240X240 |
290 |
340X340 |
120 |
8-ф13 |
|
φ260 |
320 |
φ360 |
200 |
260X260 |
310 |
360X360 |
120 |
8-ф13 |
|
φ280 |
340 |
φ380 |
200 |
280X280 |
330 |
380X380 |
120 |
8-ф17 |
|
φ300 |
360 |
φ400 |
200 |
300X300 |
350 |
400X400 |
120 |
8-ф17 |
|
φ320 |
380 |
φ420 |
200 |
320X320 |
370 |
420X420 |
120 |
8-ф17 |
|
φ340 |
400 |
φ440 |
200 |
340X340 |
390 |
440X440 |
120 |
8-ф17 |
|
φ400 |
460 |
φ500 |
220 |
400X400 |
450 |
500X500 |
120 |
8-ф17 |
|
φ440 |
500 |
φ550 |
220 |
440X440 |
495 |
550X550 |
140 |
12-ф17 |
|
φ500 |
560 |
φ610 |
220 |
500X500 |
555 |
610X610 |
140 |
12-ф17 |
|
φ540 |
600 |
φ650 |
220 |
540X540 |
600 |
650X650 |
140 |
12-ф17 |
|
φ600 |
660 |
φ720 |
240 |
600X600 |
660 |
720X720 |
160 |
12-ф20 |
|
φ650 |
720 |
φ770 |
240 |
650X650 |
720 |
770X770 |
160 |
12-ф20 |
|
φ700 |
770 |
φ820 |
240 |
700X700 |
765 |
820X820 |
160 |
12-ф20 |
|
φ750 |
820 |
φ870 |
240 |
750X750 |
825 |
870X870 |
160 |
12-ф20 |
|
φ800 |
870 |
φ920 |
240 |
800X800 |
870 |
920X920 |
160 |
16-ф20 |
注：本阀可按用户要求制造。 |
